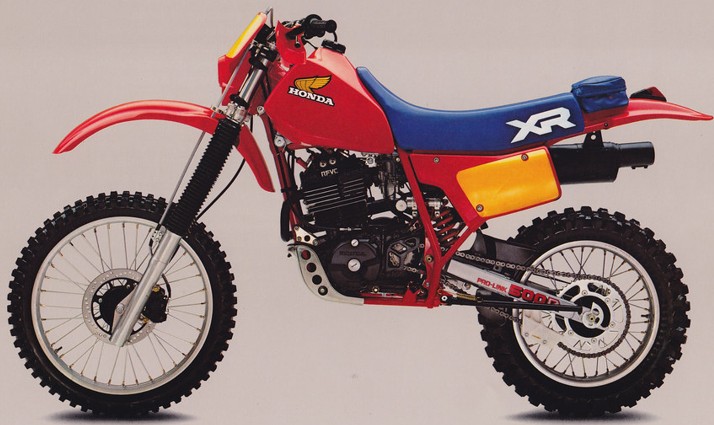

1984 Honda XR500 Specifications and Specs
Specifications and workshop reference information for the 1984 Honda XR500, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
🔥 Interactive Build Available
[ + ] symbols to view parts, suppliers and upgrade links.
Left Side
Right Side
+
+
+
+
+
+
+
+
+
+
+
+
+
General Specifications
Engine Type Air-cooled, 4-stroke, single-cylinder, RFVC Displacement 498 cc Bore × Stroke 89.0 × 80.0 mm Compression Ratio 8.3:1 Maximum Power Approx. 34 hp Maximum Torque Carburetor Keihin | Replacement Options Lubrication Dry sump Fuel Mix Ratio Ignition CDI Spark Plug NGK DPR8Z Spark Plug Gap 0.6–0.7 mm Valve Clearance (Intake) 0.05 mm Valve Clearance (Exhaust) 0.10 mm
Transmission
Transmission Type 5-speed manual Clutch Wet multi-plate Final Reduction Chain drive
Dimensions
Overall Length 2,200 mm Overall Width 910 mm Overall Height 1,220 mm Wheelbase 1,450 mm Ground Clearance 320 mm Fuel Tank Capacity 9.0 L
Bearing Sizes
Bearing Finder
Chassis
Frame Type Steel single cradle Front Suspension Telescopic forks | Fork Oil Levels Rear Suspension Pro-Link monoshock Front Suspension Travel Rear Suspension Travel
Brakes & Wheels
500cc Other Specs
