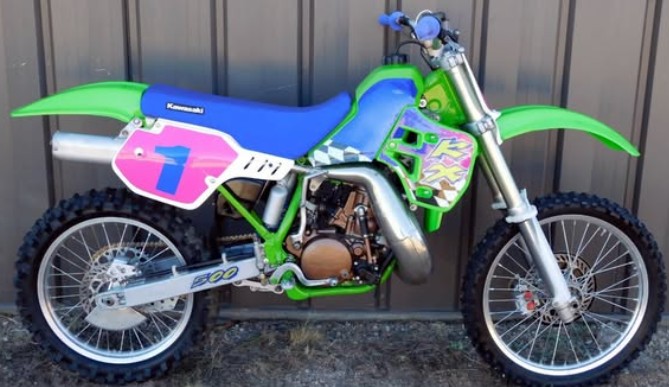

1997 Kawasaki KX500
Specifications and workshop reference information for the 1997 Kawasaki KX500, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Liquid-cooled 2-stroke single, reed valve (KIPS) |
| Displacement | 499 cc |
| Bore × Stroke | 86 × 86 mm |
| Compression Ratio | Not confirmed |
| Maximum Power | Not confirmed |
| Maximum Torque | Not confirmed |
| Carburetor | 38 mm Keihin PWK |
| Lubrication | Premix |
| Fuel Mix Ratio | Not confirmed |
| Ignition | CDI |
| Spark Plug | NGK B9EV (typical) |
| Spark Plug Gap | 0.6–0.7 mm |
Transmission
| Transmission Type | 5-speed |
| Clutch | Wet multi-plate |
| Primary Reduction | Not confirmed |
| Final Reduction | Chain |
| Overall Reduction | Not confirmed |
Dimensions
| Overall Length | Not confirmed |
| Overall Width | Not confirmed |
| Overall Height | Not confirmed |
| Wheelbase | 1485 mm / 58.5 in |
| Ground Clearance | Not confirmed |
| Fuel Tank Capacity | Not confirmed |
Chassis
| Frame Type | Perimeter-style high-tensile steel |
| Caster Angle | Not confirmed |
| Trail | Not confirmed |
| Front Suspension | 43 mm USD cartridge forks, adjustable |
| Rear Suspension | Uni-Trak single shock, adjustable |
| Front Suspension Travel | Not confirmed |
| Rear Suspension Travel | Not confirmed |
Brakes & Wheels
| Front Tire | 3.00-21 |
| Rear Tire | 5.10-18 |
| Front Brake | Single disc |
| Rear Brake | Drum |
