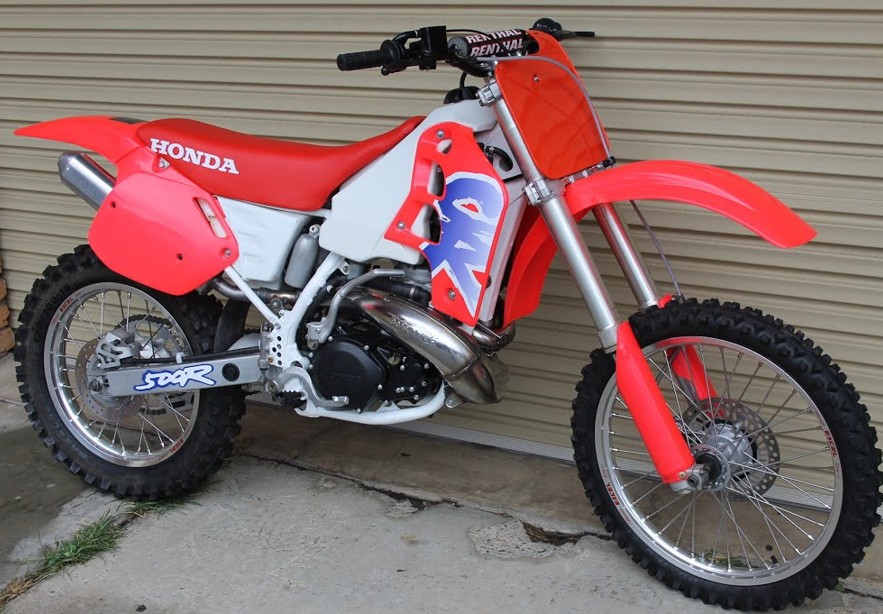

1993 Honda CR500 Specifications and Specs
Specifications and workshop reference information for the 1993 Honda CR500, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Liquid-cooled, 2-stroke, single-cylinder |
| Displacement | 491 cc |
| Bore × Stroke | 89.0 × 79.0 mm |
| Compression Ratio | 7.0:1 |
| Maximum Power | Approx. 60 hp |
| Maximum Torque | |
| Carburetor | Keihin PWK | Replacement Options |
| Lubrication | Premix |
| Fuel Mix Ratio | 32:1 | Premix Calculator |
| Ignition | CDI |
| Spark Plug | NGK BR8EG |
| Spark Plug Gap | 0.6–0.7 mm |
Transmission
| Transmission Type | 5-speed manual |
| Clutch | Wet multi-plate |
| Final Reduction | Chain drive |
Dimensions
| Overall Length | 2,180 mm |
| Overall Width | 820 mm |
| Overall Height | 1,250 mm |
| Wheelbase | 1,480 mm |
| Ground Clearance | 340 mm |
| Fuel Tank Capacity | 9.0 L |
| Bearing Sizes |
Bearing Finder |
Chassis
| Frame Type | Steel perimeter (late models) |
| Front Suspension | USD cartridge forks | Fork Oil Levels |
| Rear Suspension | Pro-Link monoshock |
| Front Suspension Travel | |
| Rear Suspension Travel | |
Brakes & Wheels
