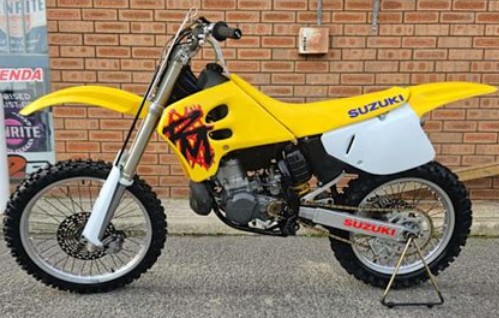

1994 Suzuki RM250 Specifications and Specs
Specifications and workshop reference information for the 1994 Suzuki RM250, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Single-cylinder, liquid-cooled, case reed valve, 2-stroke |
| Displacement | 249 cc |
| Bore × Stroke | 69.0 mm × 66.8 mm |
| Compression Ratio | 8.9:1 |
| Maximum Power | 49 hp @ 8,500 rpm |
| Maximum Torque | 43 Nm @ 7,500 rpm |
| Carburetor | Mikuni TM38SS | Replacement Options |
| Lubrication | Premix |
| Fuel Mix Ratio | 32:1 | Premix Calculator |
| Ignition | CDI |
| Spark Plug | NGK BR8EG |
| Spark Plug Gap | 0.7 - 0.8 mm |
Transmission
| Transmission Type | 5-speed constant mesh |
| Clutch | Wet multi-plate |
| Primary Reduction | 3.045 (67/22) |
| Final Reduction | 3.846 (50/13) |
| Overall Reduction | 11.71:1 |
Dimensions
| Overall Length | 2180 mm |
| Overall Width | 825 mm |
| Overall Height | 1250 mm |
| Wheelbase | 1500 mm |
| Ground Clearance | 355 mm |
| Fuel Tank Capacity | 8.5 L |
| Bearing Sizes |
Bearing Finder |
Chassis
| Frame Type | Chrome-moly steel frame |
| Caster Angle | 27.5° |
| Trail | 118 mm |
| Front Suspension | 46 mm Showa upside-down cartridge forks | Fork Oil Levels |
| Rear Suspension | Full Floater monoshock |
| Front Suspension Travel | 305 mm |
| Rear Suspension Travel | 320 mm |
Brakes & Wheels
