1986 Honda CR250 Specifications and Specs
Specifications and workshop reference information for the 1986 Honda CR250, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
🔥 Interactive Build Available
[ + ] symbols to view parts, suppliers and upgrade links.

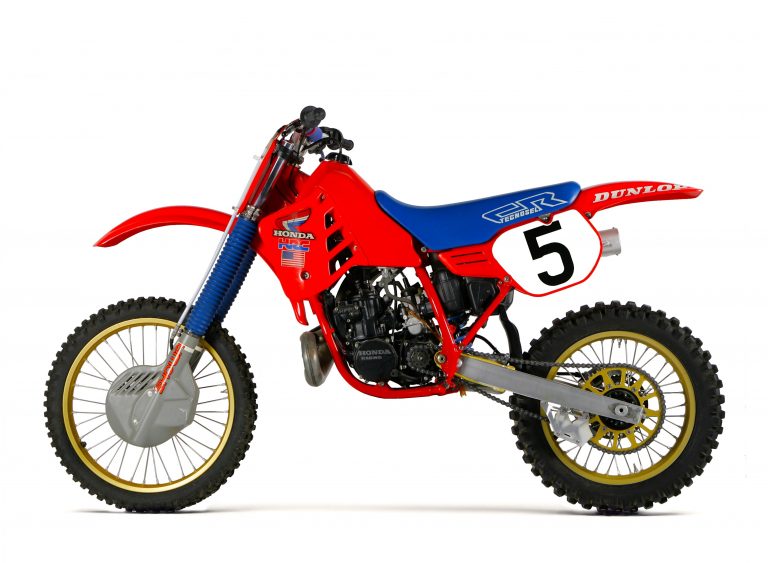

Left Side
Right Side
General Specifications
Engine Type Single-cylinder, two-stroke, liquid-cooled Displacement 249 cc Bore × Stroke 66.4 × 72.0 mm Compression Ratio 8.2:1 Maximum Power ~44 hp Maximum Torque Carburetor Keihin 38 mm Lubrication Premix Fuel Mix Ratio 32:1 Ignition CDI Spark Plug NGK BR8EG Spark Plug Gap 0.5 – 0.6 mm
Transmission
Transmission Type 5-speed constant mesh Clutch Wet multi-plate Primary Reduction 3.000 Final Reduction 3.538 Overall Reduction
Dimensions
Overall Length 2,175 mm Overall Width 825 mm Overall Height 1,255 mm Wheelbase 1,480 mm Ground Clearance 340 mm Fuel Tank Capacity 8.0 L
Chassis
Frame Type Aluminum twin spar Caster Angle Trail Front Suspension Showa cartridge forks Rear Suspension Pro-Link single shock Front Suspension Travel Rear Suspension Travel
Brakes & Wheels
Front Tire 3.00 – 21 Rear Tire 4.50 – 18 Front Brake Disc Rear Brake Disc
