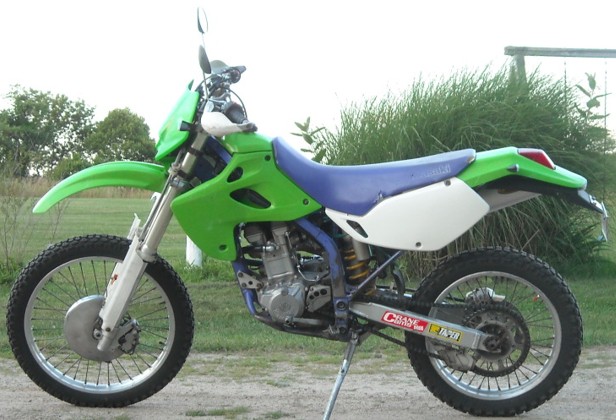

1994 Kawasaki KLX250
Specifications and workshop reference information for the 1994 Kawasaki KLX250, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Liquid-cooled 4-stroke single-cylinder, DOHC |
| Displacement | 249 cc |
| Bore × Stroke | 72.0 × 61.2 mm |
| Compression Ratio | 11.0:1 |
| Maximum Power | ~30 hp |
| Maximum Torque | ~24 Nm |
| Carburetor | Keihin CVK 34 mm |
| Lubrication | Wet sump |
| Ignition | CDI |
| Spark Plug | NGK DPR8EA-9 |
| Spark Plug Gap | 0.8–0.9 mm |
| Valve Clearance (Intake) | 0.10–0.15 mm |
| Valve Clearance (Exhaust) | 0.15–0.20 mm |
Transmission
| Transmission Type | 6-speed manual |
| Clutch | Wet multi-plate |
| Primary Reduction | ~3.083 |
| Final Reduction | ~3.000 |
| Overall Reduction | N/A |
Dimensions
| Overall Length | ~2150 mm |
| Overall Width | ~820 mm |
| Overall Height | ~1180 mm |
| Wheelbase | ~1420 mm |
| Ground Clearance | ~300 mm |
| Fuel Tank Capacity | ~9.5 L |
Chassis
| Frame Type | Perimeter steel frame |
| Caster Angle | ~27° |
| Trail | ~110 mm |
| Front Suspension | 43 mm cartridge forks |
| Rear Suspension | Uni-Trak monoshock |
| Front Suspension Travel | ~300 mm |
| Rear Suspension Travel | ~290 mm |
Brakes & Wheels
| Front Tire | 80/100-21 |
| Rear Tire | 100/100-18 |
| Front Brake | Disc |
| Rear Brake | Disc |
