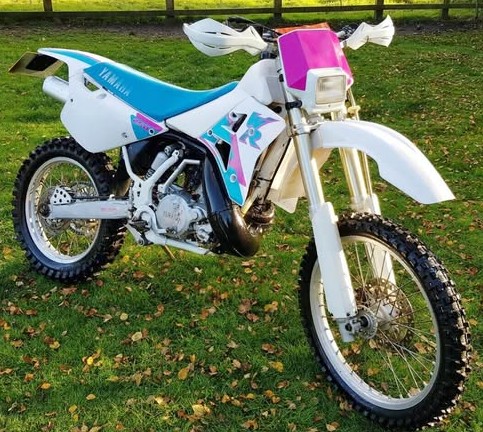

1992 Yamaha WR250
Specifications and workshop reference information for the 1992 Yamaha WR250, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Liquid-cooled 2-stroke single-cylinder reed valve |
| Displacement | 249 cc |
| Bore × Stroke | 69.0 × 66.4 mm |
| Compression Ratio | 8.9:1 |
| Maximum Power | Approx. 46 hp |
| Maximum Torque | Approx. 43 Nm |
| Carburetor | Mikuni TM38SS |
| Lubrication | Premix |
| Fuel Mix Ratio | 30:1 |
| Ignition | CDI |
| Spark Plug | NGK BR8EG |
| Spark Plug Gap | 0.7 – 0.8 mm |
Transmission
| Transmission Type | 6-speed manual |
| Clutch | Wet multi-plate |
| Primary Reduction | 3.040 |
| Final Reduction | 3.846 |
| Overall Reduction | 11.69 |
Dimensions
| Overall Length | 2175 mm |
| Overall Width | 825 mm |
| Overall Height | 1265 mm |
| Wheelbase | 1485 mm |
| Ground Clearance | 360 mm |
| Fuel Tank Capacity | 9.5 L |
Chassis
| Frame Type | Steel semi-double cradle |
| Caster Angle | 27.5° |
| Trail | 117 mm |
| Front Suspension | Kayaba cartridge forks |
| Rear Suspension | Monocross rising-rate single shock |
| Front Suspension Travel | 300 mm |
| Rear Suspension Travel | 315 mm |
Brakes & Wheels
| Front Tire | 80/100-21 |
| Rear Tire | 110/100-18 |
| Front Brake | Single disc |
| Rear Brake | Single disc |
