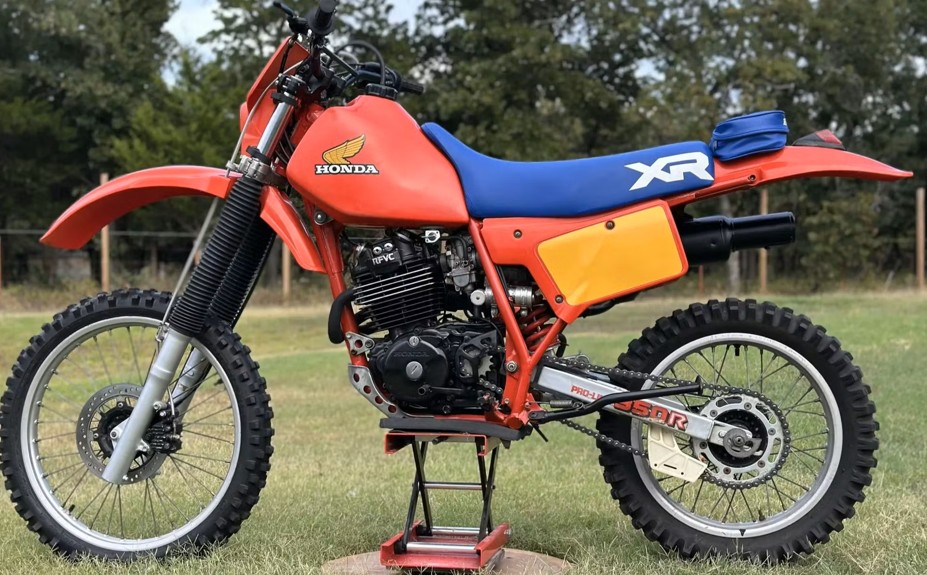

1984 Honda XR250 Specifications and Specs
Specifications and workshop reference information for the 1984 Honda XR250, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Air-cooled, 4-stroke, single-cylinder, RFVC |
| Displacement | 249 cc |
| Bore × Stroke | 74.0 × 57.8 mm |
| Compression Ratio | 9.3:1 |
| Maximum Power | Approx. 24 hp |
| Maximum Torque | |
| Carburetor | Keihin | Replacement Options |
| Lubrication | Dry sump |
| Fuel Mix Ratio | |
| Ignition | CDI |
| Spark Plug | NGK DPR8Z |
| Spark Plug Gap | 0.6–0.7 mm |
| Valve Clearance (Intake) | 0.10 mm |
| Valve Clearance (Exhaust) | 0.12 mm |
Transmission
| Transmission Type | 6-speed manual |
| Clutch | Wet multi-plate |
| Final Reduction | Chain drive |
Dimensions
| Overall Length | 2,120 mm |
| Overall Width | 890 mm |
| Overall Height | 1,170 mm |
| Wheelbase | 1,410 mm |
| Ground Clearance | 300 mm |
| Fuel Tank Capacity | 9.0 L |
| Bearing Sizes |
Bearing Finder |
Chassis
| Frame Type | Steel single cradle |
| Front Suspension | Telescopic forks | Fork Oil Levels |
| Rear Suspension | Pro-Link monoshock |
| Front Suspension Travel | |
| Rear Suspension Travel | |
Brakes & Wheels
250cc Other Specs
