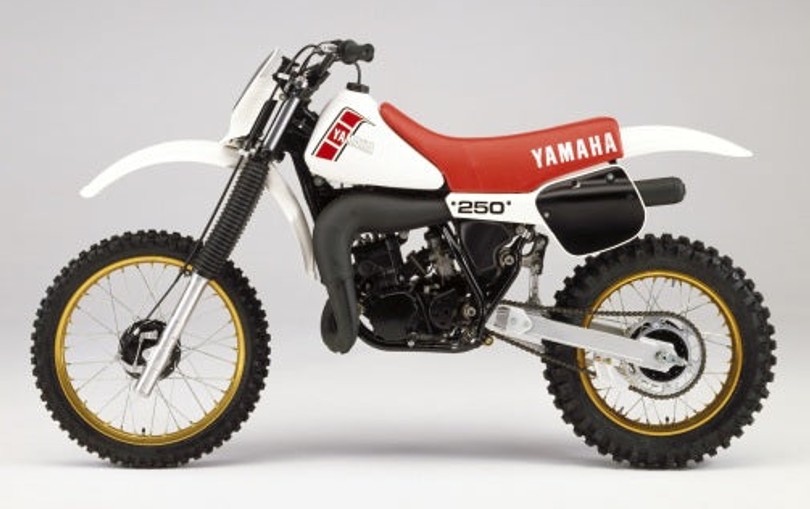

1982 Yamaha YZ250 Specifications and Specs
Specifications and workshop reference information for the 1982 Yamaha YZ250, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Liquid-cooled 2-stroke single-cylinder reed valve |
| Displacement | 246 cc |
| Bore × Stroke | 70.0 × 64.0 mm |
| Compression Ratio | 7.5:1 |
| Maximum Power | |
| Maximum Torque | |
| Carburetor | Mikuni VM38SS |
| Lubrication | Premix |
| Fuel Mix Ratio | 20:1 |
| Ignition | CDI |
| Spark Plug | NGK B8ES |
| Spark Plug Gap | 0.6 - 0.7 mm |
Transmission
| Transmission Type | 5-speed constant mesh |
| Clutch | Wet multi-plate |
| Primary Reduction | |
| Final Reduction | Chain drive |
| Overall Reduction | |
Dimensions
| Overall Length | 2180 mm |
| Overall Width | 825 mm |
| Overall Height | 1260 mm |
| Wheelbase | 1485 mm |
| Ground Clearance | 340 mm |
| Fuel Tank Capacity | 9.0 L |
Chassis
| Frame Type | Steel single backbone |
| Caster Angle | 28° |
| Trail | |
| Front Suspension | KYB telescopic forks |
| Rear Suspension | Monocross single shock |
| Front Suspension Travel | 300 mm |
| Rear Suspension Travel | 300 mm |
Brakes & Wheels
| Front Tire | 3.00-21 |
| Rear Tire | 4.50-18 |
| Front Brake | Drum |
| Rear Brake | Drum |
