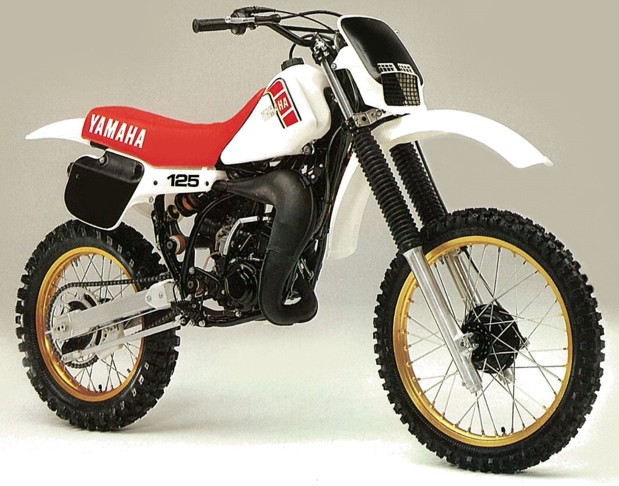

1982 Yamaha YZ125 Specifications and Specs
Specifications and workshop reference information for the 1982 Yamaha YZ125, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Liquid-cooled 2-stroke single, reed valve, YPVS |
| Displacement | 123 cc |
| Bore × Stroke | 56.0 × 50.0 mm |
| Compression Ratio | ~8.6–10.7:1 |
| Maximum Power | ~30–31 hp |
| Maximum Torque | N/A |
| Carburetor | Mikuni VM34SS | Replacement Options |
| Lubrication | Premix |
| Fuel Mix Ratio | ~32:1 | Premix Calculator |
| Ignition | CDI magneto |
| Spark Plug | NGK BR9EG |
| Spark Plug Gap | 0.5–0.6 mm |
Transmission
| Transmission Type | 6-speed constant mesh |
| Clutch | Wet multi-plate |
| Primary Reduction | ~3.409 |
| Final Reduction | ~3.714 (13T / 48T) |
| Overall Reduction | N/A |
Dimensions
| Overall Length | ~2160 mm |
| Overall Width | ~820 mm |
| Overall Height | ~1240 mm |
| Wheelbase | 1463 mm |
| Ground Clearance | ~348 mm |
| Fuel Tank Capacity | 8.3 L |
| Bearing Sizes |
Bearing Finder |
Chassis
| Frame Type | Steel single downtube |
| Caster Angle | ~28° |
| Trail | ~120 mm |
| Front Suspension | Kayaba telescopic forks | Fork Oil Levels |
| Rear Suspension | Monocross linkage |
| Front Suspension Travel | ~300 mm |
| Rear Suspension Travel | ~315 mm |
Brakes & Wheels
