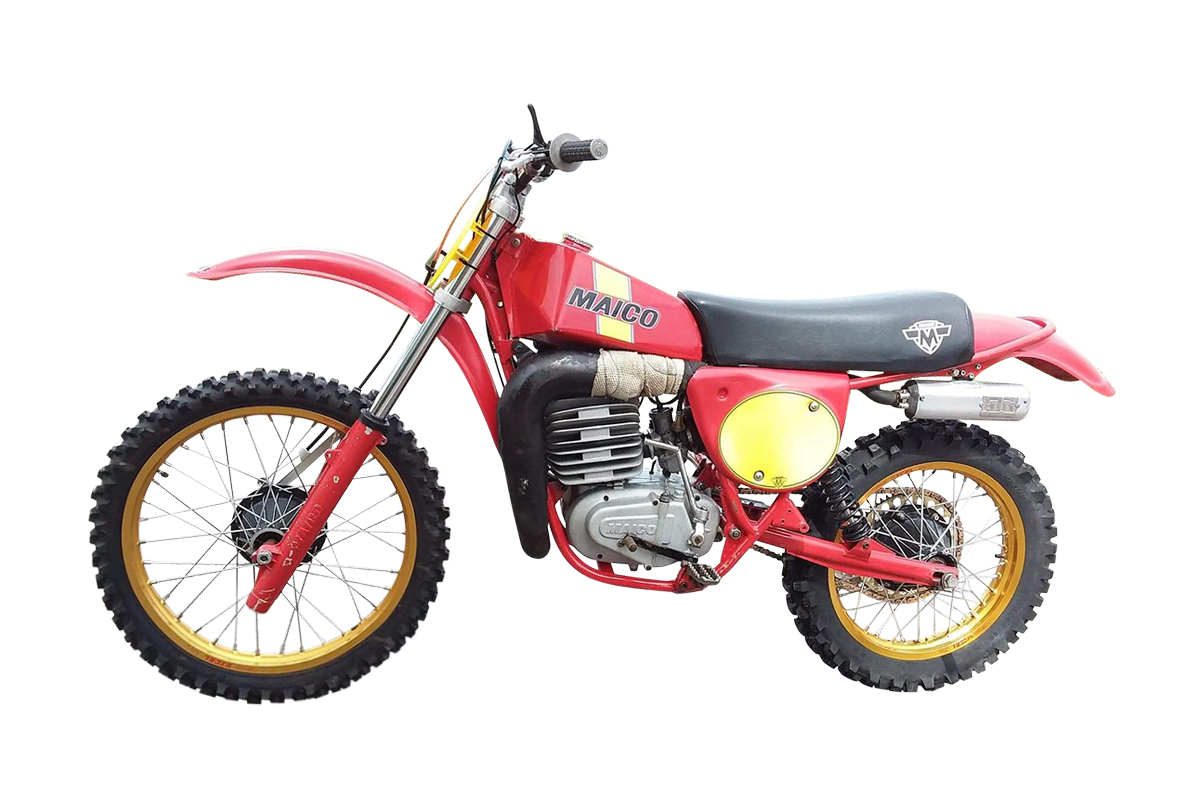

1979 Maico Magnum 440 Specifications and Specs
Specifications and workshop reference information for the 1979 Maico Magnum 440, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
🔥 Interactive Build Available
[ + ] symbols to view parts, suppliers and upgrade links.
Left Side
Right Side
+
+
+
+
+
+
+
+
+
+
+
+
+
General Specifications
Engine Type Air-cooled single-cylinder 2-stroke Displacement 438 cc Bore × Stroke 82 mm × 82 mm Compression Ratio Approx. 11.0:1 Maximum Power Approx. 44 hp Maximum Torque Not Published Carburetor Bing 40 mm | Replacement Options Lubrication Premix Fuel Mix Ratio 25:1 | Premix Calculator Ignition Bosch Motoplat Magneto Spark Plug Bosch W260T1 Spark Plug Gap 0.5 mm
Transmission
Transmission Type 5-speed manual Clutch Wet multi-plate Primary Reduction Not Published Final Reduction 15T / 52T Overall Reduction Not Published
Dimensions
Overall Length 2190 mm Overall Width 820 mm Overall Height 1230 mm Wheelbase 1480 mm Ground Clearance 330 mm Fuel Tank Capacity 11.5 L
Bearing Sizes
Bearing Finder
Chassis
Frame Type Chrome-moly steel single backbone Caster Angle Approx. 28° Trail Approx. 120 mm Front Suspension Maico telescopic forks | Fork Oil Levels Rear Suspension Twin shock swingarm Front Suspension Travel 280 mm Rear Suspension Travel 250 mm
Brakes & Wheels
440cc Other Specs
