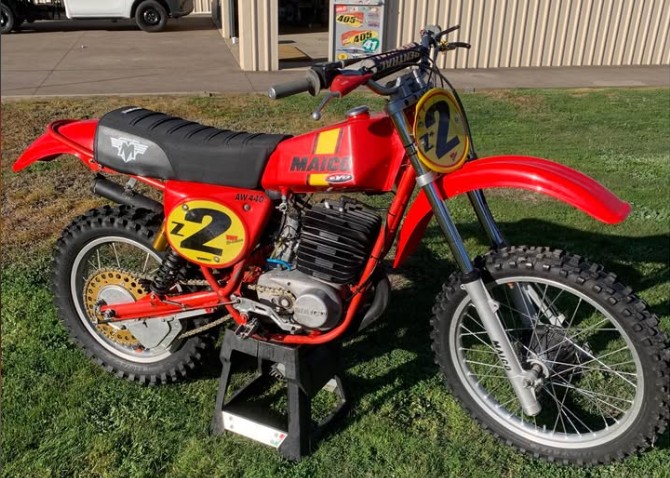

1977 Maico AW440
Specifications and workshop reference information for the 1977 Maico AW440, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Single cylinder, 2-stroke |
| Displacement | 440 cc / 26.8 cu-in |
| Bore × Stroke | 82 × 84 mm |
| Compression Ratio | 7.2:1 |
| Maximum Power | 44 hp |
| Maximum Torque | |
| Carburetor | Bing 40 mm |
| Lubrication | Premix |
| Fuel Mix Ratio | 25:1 |
| Ignition | Bosch magneto |
| Spark Plug | Bosch W240T1 |
| Spark Plug Gap | 0.5 - 0.6 mm |
Transmission
| Transmission Type | 5-speed |
| Clutch | Wet multi-plate |
| Primary Reduction | |
| Final Reduction | Chain |
| Overall Reduction | |
Dimensions
| Overall Length | 2180 mm |
| Overall Width | 860 mm |
| Overall Height | 1220 mm |
| Wheelbase | 1480 mm |
| Ground Clearance | 340 mm |
| Fuel Tank Capacity | 10 L |
Chassis
| Frame Type | Chrome moly steel frame |
| Caster Angle | 28° |
| Trail | |
| Front Suspension | Telescopic forks |
| Rear Suspension | Dual shocks |
| Front Suspension Travel | 280 mm |
| Rear Suspension Travel | 120 mm |
Brakes & Wheels
| Front Tire | 3.00-21 |
| Rear Tire | 4.50-18 |
| Front Brake | Drum |
| Rear Brake | Drum |
