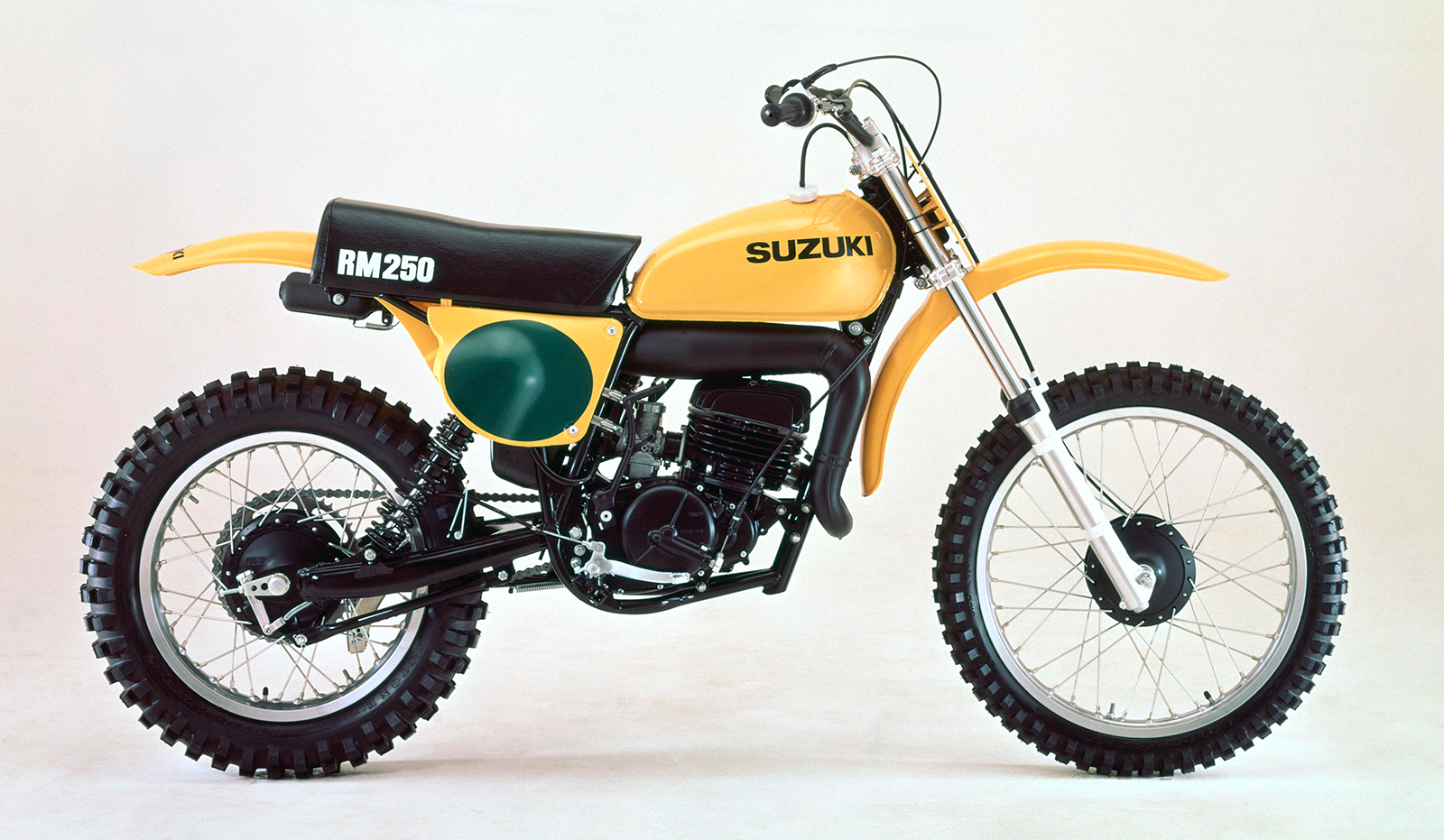

1976 Suzuki RM250A Specifications and Specs
Specifications and workshop reference information for the 1976 Suzuki RM250A, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Model | Suzuki RM250A |
| Year | 1976 |
| Engine Type | Piston-port crankcase-reed, 2-stroke single |
| Displacement | 246 cc |
| Bore x Stroke | 70 x 64 mm |
| Compression Ratio | 7.1:1 |
| Carburetor |
Mikuni VM36SS (36 mm) |
Replacement Options
|
| Air Filtration | Oiled urethane foam |
| Ignition | Magnetically triggered CDI |
| Power | 29.3 hp @ 7500 rpm |
| Torque | 20.52 lb-ft @ 7500 rpm |
| Fuel Capacity | 2.1 gal (8 litres) |
| Oil System | Premix (mixed with fuel) |
Transmission
| Primary Drive | Spur gear 60/22 |
| Final Drive | #520 chain |
| Sprockets | 50/13 |
| Transmission Oil | 900 cc |
Dimensions
| Wheelbase | 56.7 in (144 cm) |
| Seat Height | 33 in (83.8 cm) |
| Ground Clearance | 10 in (25.4 cm) |
| Weight | 231.5 lb (105 kg) |
| Test Weight | 391.5 lb (177.6 kg) |
| Bearing Sizes |
Bearing Finder |
Chassis & Brakes
| Front Tire | 3.00 x 21 | Tyre Size Guide |
| Rear Tire | 4.50 x 18 | Tyre Size Guide |
| Front Brake | 130 x 28 mm drum |
| Rear Brake | 150 x 29 mm drum |
| Brake Swept Area | 38.86 sq in |
| Rake / Trail | 30° / 4.96 in |
