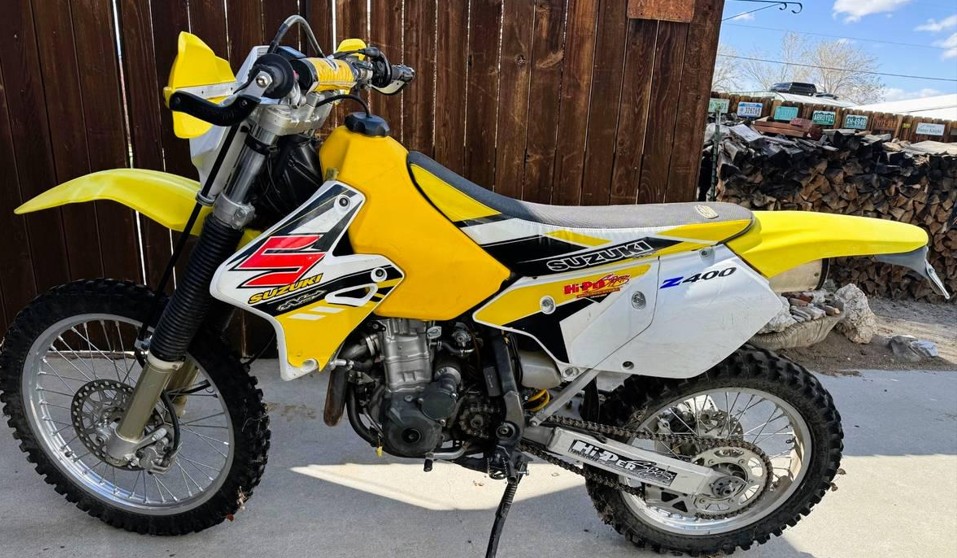

2000 Suzuki DRZ400 Specifications and Specs
Specifications and workshop reference information for the 2000 Suzuki DRZ400, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Liquid-cooled, 4-stroke, single-cylinder, DOHC, 4-valve |
| Displacement | 398 cc |
| Bore × Stroke | 90.0 × 62.6 mm |
| Compression Ratio | 11.3:1 |
| Maximum Power | Approx. 39 hp |
| Maximum Torque | |
| Carburetor | Mikuni BSR36 |
| Lubrication | Wet sump |
| Fuel Mix Ratio | |
| Ignition | CDI |
| Spark Plug | NGK CR8E |
| Spark Plug Gap | 0.7–0.8 mm |
| Valve Clearance (Intake) | 0.10–0.20 mm |
| Valve Clearance (Exhaust) | 0.20–0.30 mm |
Transmission
| Transmission Type | 5-speed manual |
| Clutch | Wet multi-plate |
| Primary Reduction | |
| Final Reduction | Chain drive |
| Overall Reduction | |
Dimensions
| Overall Length | 2,225 mm |
| Overall Width | 825 mm |
| Overall Height | 1,230 mm |
| Wheelbase | 1,475 mm |
| Ground Clearance | 300 mm |
| Fuel Tank Capacity | 10.0 L |
Chassis
| Frame Type | Steel perimeter |
| Caster Angle | |
| Trail | |
| Front Suspension | USD cartridge forks |
| Rear Suspension | Link-type monoshock |
| Front Suspension Travel | |
| Rear Suspension Travel | |
Brakes & Wheels
| Front Tire | 80/100-21 |
| Rear Tire | 110/100-18 |
| Front Brake | Disc brake |
| Rear Brake | Disc brake |
400cc Other Specs
