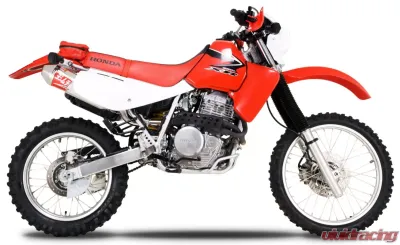

1993 Honda XR650L Specifications and Specs
Specifications, manuals and workshop reference information.
Note:
Specs are compiled from factory data, manuals and owner feedback.
Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Air-cooled, 4-stroke, single cylinder |
| Displacement | 644 cc |
| Bore × Stroke | 100 × 82 mm |
| Compression Ratio | 8.3:1 |
| Valve Train | OHC, 4 valves |
| Carburetor | Keihin CV carburetor |
Replacement Options |
| Cooling System | Air cooled |
Service Specifications
| Valve Clearance (Intake) | 0.10 mm (0.004 in) |
| Valve Clearance (Exhaust) | 0.12 mm (0.005 in) |
| Spark Plug Gap | 0.8–0.9 mm |
| Spark Plug | NGK DPR8EA-9 |
Fuel & Oil
| Fuel Tank Capacity | 10.5 L |
| Oil Capacity | 2.0 L |
Chassis & Suspension
| Frame Type | Steel double cradle |
| Front Suspension | Telescopic fork |
Fork Oil Levels |
| Rear Suspension | Pro-Link mono shock |
| Front Brake | Disc |
| Rear Brake | Disc |
Dimensions
| Overall Length | 2,185 mm |
| Overall Width | 855 mm |
| Overall Height | 1,245 mm |
| Wheelbase | 1,455 mm |
| Seat Height | 940 mm |
| Ground Clearance | 330 mm |
| Dry Weight | 147 kg |
| Bearing Sizes |
Bearing Finder |
Transmission
| Transmission Type | 5-speed |
| Clutch | Wet multi-plate |
| Final Drive | Chain |
Electrical
| Ignition System | CDI |
| Starting System | Electric start |
| Battery | 12V |
Wheels and Tyres
