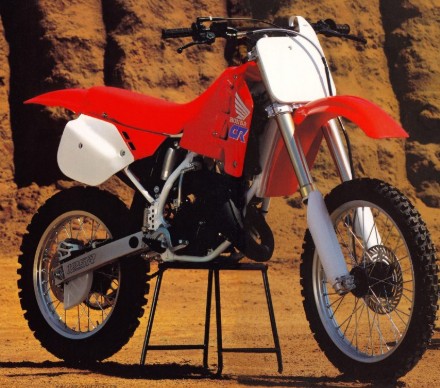

1990 Honda CR125
Specifications and workshop reference information for the 1990 Honda CR125, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Liquid-cooled 2-stroke single-cylinder reed valve |
| Displacement | 124 cc |
| Bore × Stroke | 54.0 mm × 54.5 mm |
| Compression Ratio | 8.7:1 |
| Maximum Power | Approx. 34 hp |
| Maximum Torque | |
| Carburetor | Keihin PJ34 |
| Lubrication | Pre-mix |
| Fuel Mix Ratio | 20:1 |
| Ignition | CDI digital ignition |
| Spark Plug | NGK BR9EG |
| Spark Plug Gap | 0.6 - 0.7 mm |
Transmission
| Transmission Type | 6-speed close-ratio |
| Clutch | Wet multi-plate |
| Primary Reduction | 3.476 |
| Final Reduction | Chain drive |
| Overall Reduction | |
Dimensions
| Overall Length | 86.6 in |
| Overall Width | 36.0 in |
| Overall Height | 49.2 in |
| Wheelbase | 57.7 in |
| Ground Clearance | 14.0 in |
| Fuel Tank Capacity | 2.1 gal |
Chassis
| Frame Type | Double cradle steel frame |
| Caster Angle | 27.7° |
| Trail | 4.4 in |
| Front Suspension | Showa cartridge telescopic forks |
| Rear Suspension | Pro-Link monoshock |
| Front Suspension Travel | 12.2 in |
| Rear Suspension Travel | 12.2 in |
Brakes & Wheels
| Front Tire | 80/100-21 |
| Rear Tire | 100/90-18 |
| Front Brake | Hydraulic single disc |
| Rear Brake | Hydraulic single disc |
