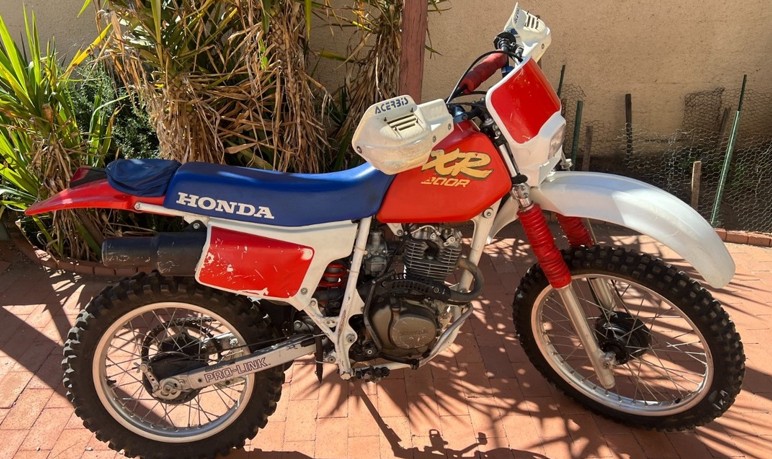

1988 Honda XR200 Specifications and Specs
Specifications and workshop reference information for the 1988 Honda XR200, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Air-cooled, 4-stroke, single-cylinder, OHC, 2-valve |
| Displacement | 195 cc |
| Bore × Stroke | 65.5 × 57.8 mm |
| Compression Ratio | 10.0:1 |
| Maximum Power | Approx. 15 hp |
| Maximum Torque | |
| Carburetor | Keihin |
| Lubrication | Wet sump |
| Fuel Mix Ratio | |
| Ignition | CDI |
| Spark Plug | NGK DPR8EA-9 |
| Spark Plug Gap | 0.8–0.9 mm |
| Valve Clearance (Intake) | 0.05 mm |
| Valve Clearance (Exhaust) | 0.05 mm |
Transmission
| Transmission Type | 6-speed manual |
| Clutch | Wet multi-plate |
| Primary Reduction | |
| Final Reduction | Chain drive |
| Overall Reduction | |
Dimensions
| Overall Length | 2,050 mm |
| Overall Width | 820 mm |
| Overall Height | 1,140 mm |
| Wheelbase | 1,330 mm |
| Ground Clearance | 280 mm |
| Fuel Tank Capacity | 8.0 L |
Chassis
| Frame Type | Steel single cradle |
| Caster Angle | |
| Trail | |
| Front Suspension | Telescopic forks |
| Rear Suspension | Pro-Link monoshock |
| Front Suspension Travel | |
| Rear Suspension Travel | |
Brakes & Wheels
| Front Tire | 2.75-21 |
| Rear Tire | 4.10-18 |
| Front Brake | Drum brake |
| Rear Brake | Drum brake |
200cc Other Specs
