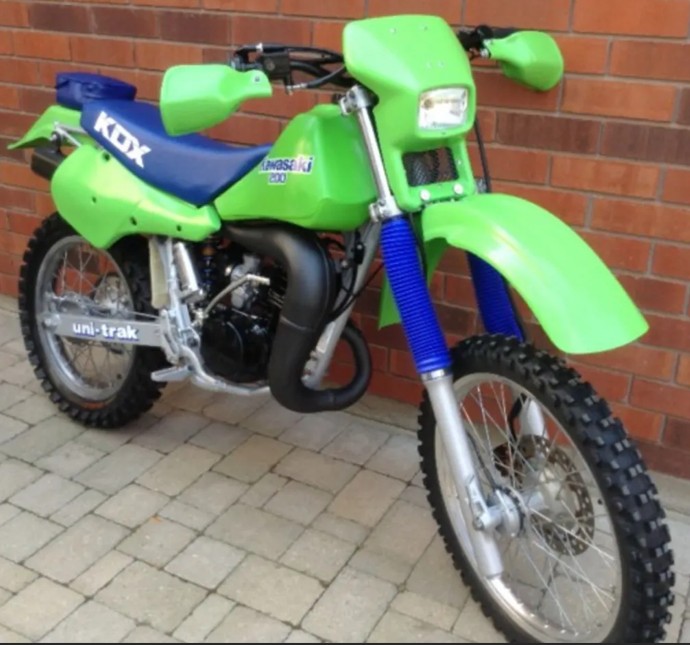

1987 Kawasaki KDX200 Specifications and Specs
Specifications and workshop reference information for the 1987 Kawasaki KDX200, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Air-cooled, single-cylinder, 2-stroke, reed valve |
| Displacement | 198 cc |
| Bore × Stroke | 66.0 × 58.0 mm |
| Compression Ratio | 7.7:1 |
| Maximum Power | Approx. 25–28 hp |
| Maximum Torque | N/A |
| Carburetor | Mikuni VM34SS |
| Lubrication | Premix |
| Fuel Mix Ratio | 32:1 |
| Ignition | CDI |
| Spark Plug | NGK B8ES |
| Spark Plug Gap | 0.6 – 0.7 mm |
Transmission
| Transmission Type | 6-speed manual |
| Clutch | Wet multi-plate |
| Primary Reduction | N/A |
| Final Reduction | Chain |
| Overall Reduction | N/A |
Dimensions
| Overall Length | N/A |
| Overall Width | N/A |
| Overall Height | N/A |
| Wheelbase | Approx. 1430 mm |
| Ground Clearance | N/A |
| Fuel Tank Capacity | 12.5 L |
Chassis
| Frame Type | Steel perimeter-style cradle (KX-based) |
| Caster Angle | N/A |
| Trail | N/A |
| Front Suspension | 43 mm Kayaba telescopic forks |
| Rear Suspension | Uni-Trak monoshock |
| Front Suspension Travel | Approx. 270 mm |
| Rear Suspension Travel | Approx. 300 mm |
Brakes & Wheels
| Front Tire | 80/100-21 |
| Rear Tire | 100/100-18 |
| Front Brake | Single disc |
| Rear Brake | Drum |
