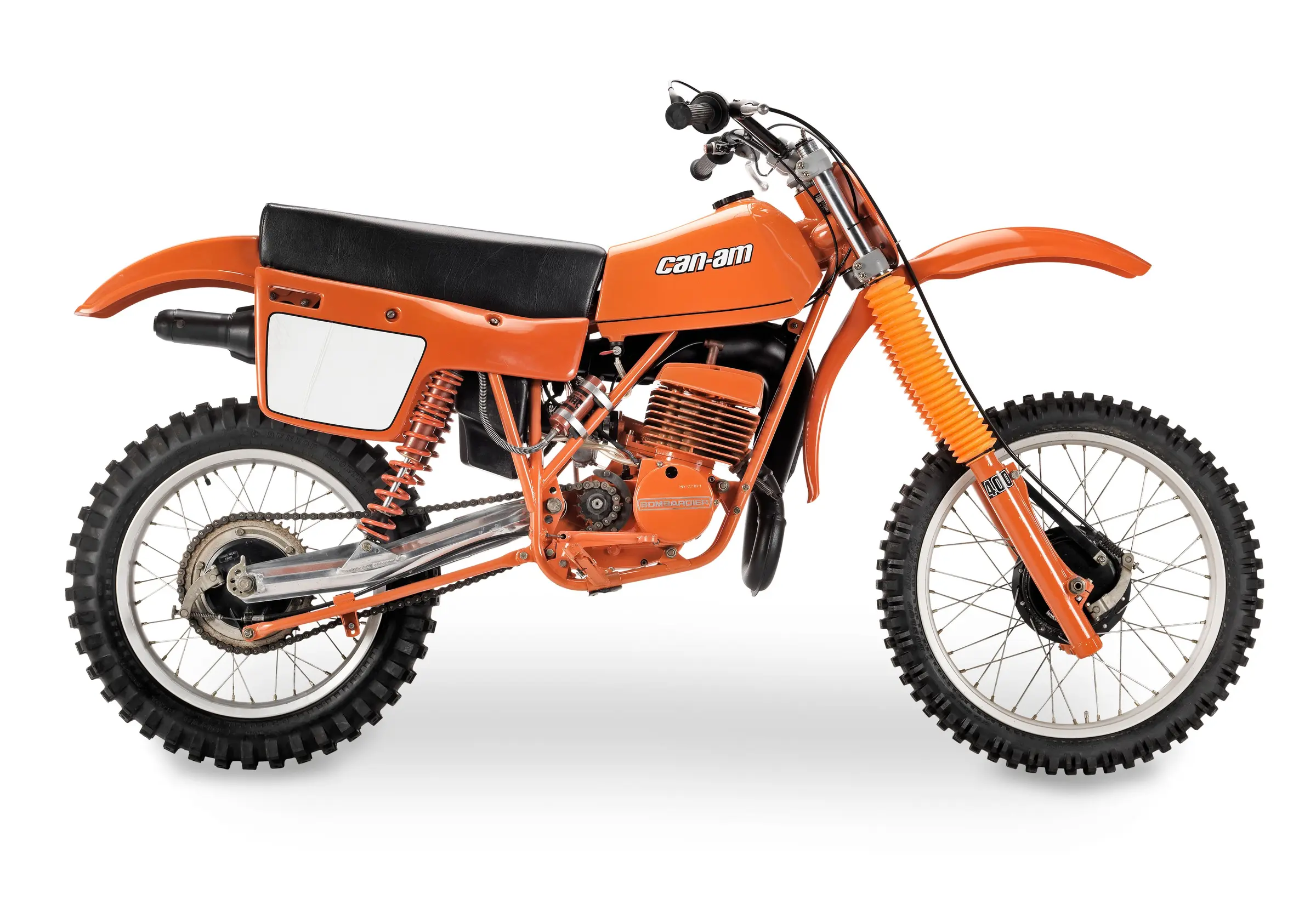

1980 Can-Am MX-6 Qualifier Specifications and Specs
Specifications and workshop reference information for the 1980 Can-Am MX-6 Qualifier, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Rotax rotary valve, air-cooled 2-stroke single |
| Displacement | 396 cc |
| Bore × Stroke | 82.0 mm × 75.0 mm |
| Compression Ratio | 6.5 : 1 |
| Power | Approx. 40 hp @ 6000 rpm |
| Carburetor | Mikuni VM32 | Replacement Options |
| Transmission | 5-speed |
| Primary Drive | Gear |
| Final Drive | Chain |
| Starting | Kick start |
Dimensions
| Wheelbase | 1405 mm |
| Dry Weight | 138 kg |
| Fuel Capacity | 11 L |
| Bearing Sizes |
Bearing Finder |
Service Specifications
| Spark Plug | NGK B8ES |
| Spark Plug Gap | 0.6–0.7 mm |
| Fuel/Oil Ratio | 25:1 |
| Ignition | Magneto |
Chassis
| Frame Type | Single cradle steel frame |
| Front Suspension | Marzocchi telescopic forks | Fork Oil Levels |
| Rear Suspension | Dual shocks (Ohlins optional) |
| Front Brake | Drum |
| Rear Brake | Drum |
| Front Fender | Preston Petty |
| Air Filter | K&N dual element |
| Tyres | Dunlop K88 |
