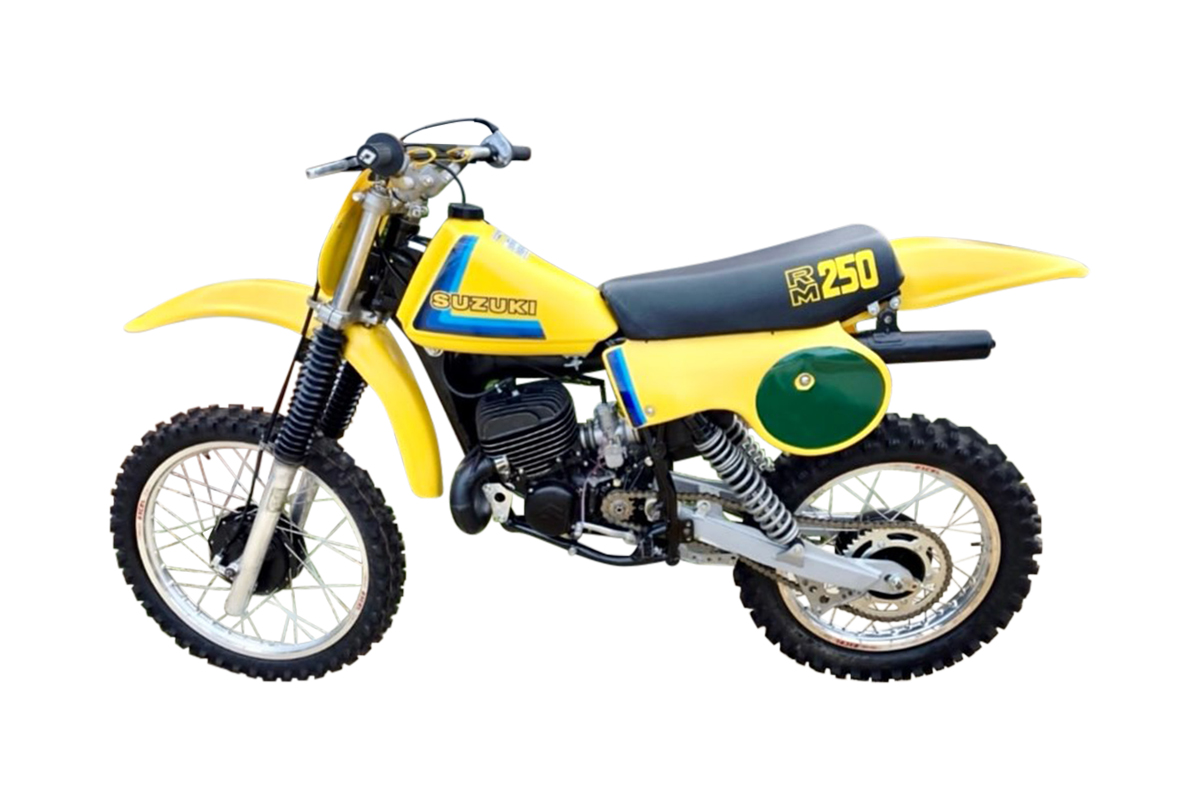

1979 Suzuki RM250N Specifications and Specs
Specifications and workshop reference information for the 1979 Suzuki RM250N, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
🔥 Interactive Build Available
[ + ] symbols to view parts, suppliers and upgrade links.
Left Side
Right Side
General Specifications
Engine Type Two-stroke, water-cooled, single-cylinder Displacement 249 cc Bore × Stroke 67.0 × 70.8 mm Compression Ratio 9.1:1 Maximum Power ~36 hp Maximum Torque ~30 Nm Carburetor Mikuni VM38SS | Replacement Options Lubrication Premix Fuel Mix Ratio 20:1 | Premix Calculator Ignition Suzuki PEI (CDI) Spark Plug NGK B8EGV Spark Plug Gap 0.5 - 0.8 mm
Transmission
Transmission Type 5-speed constant mesh Clutch Wet multi-plate Primary Reduction 2.652 Final Reduction 3.769 Overall Reduction 9.99
Dimensions
Overall Length 2170 mm Overall Width 815 mm Overall Height 1250 mm Wheelbase 1470 mm Ground Clearance 360 mm Fuel Tank Capacity 8.5 L
Bearing Sizes
Bearing Finder
Chassis
Frame Type Steel cradle Caster Angle 62°80' Trail 113 mm Front Suspension Telescopic, adjustable | Fork Oil Levels Rear Suspension Full floater, adjustable Front Suspension Travel 310 mm Rear Suspension Travel 324 mm
Brakes & Wheels
250cc Other Specs
