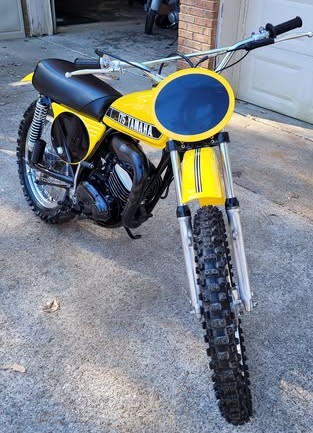

1974 Yamaha MX175 Specifications and Specs
Specifications and workshop reference information for the 1974 Yamaha MX175, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Air-cooled, 2-stroke, single-cylinder |
| Displacement | 171 cc |
| Bore × Stroke | 66.0 × 50.0 mm |
| Compression Ratio | 6.8:1 |
| Maximum Power | Approx. 18 hp |
| Maximum Torque | |
| Carburetor | Mikuni | Replacement Options |
| Lubrication | Autolube |
| Fuel Mix Ratio | |
| Ignition | Points |
| Spark Plug | NGK B8ES |
| Spark Plug Gap | 0.6–0.7 mm |
Transmission
| Transmission Type | 5-speed manual |
| Clutch | Wet multi-plate |
| Final Reduction | Chain drive |
Dimensions
| Overall Length | 2,050 mm |
| Overall Width | 820 mm |
| Overall Height | 1,120 mm |
| Wheelbase | 1,360 mm |
| Ground Clearance | 260 mm |
| Fuel Tank Capacity | 8.5 L |
| Bearing Sizes |
Bearing Finder |
Chassis
| Frame Type | Steel single cradle |
| Front Suspension | Telescopic forks | Fork Oil Levels |
| Rear Suspension | Dual shock swingarm |
| Front Suspension Travel | |
| Rear Suspension Travel | |
Brakes & Wheels
