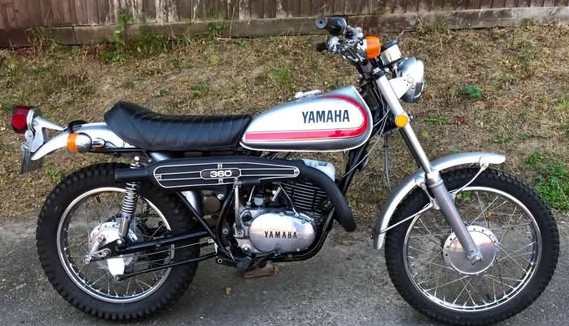

1971 Yamaha RT1 360 Specifications and Specs
Specifications and workshop reference information for the 1971 Yamaha RT1 360, including engine, chassis, service data and setup details.
Note: Specs are compiled from factory data, manuals and owner feedback. Bikes vary — if yours is different, jump into the forum and share it.
General Specifications
| Engine Type | Air-cooled, 2-stroke, single-cylinder |
| Displacement | 351 cc |
| Bore × Stroke | 80.0 × 70.0 mm |
| Compression Ratio | 6.6:1 |
| Maximum Power | Approx. 30 hp |
| Maximum Torque | 26 lb-ft (35.3 N⋅m) |
| Carburetor | Mikuni | Replacement Options |
| Lubrication | Autolube |
| Fuel Mix Ratio | na | Premix Calculator |
| Ignition | Points |
| Spark Plug | NGK B8ES |
| Spark Plug Gap | 0.6–0.7 mm |
Transmission
| Transmission Type | 5-speed manual |
| Clutch | Wet multi-plate |
| Final Reduction | Chain drive |
Dimensions
| Overall Length | 2,120 mm |
| Overall Width | 860 mm |
| Overall Height | 1,150 mm |
| Wheelbase | 1,400 mm |
| Ground Clearance | 260 mm |
| Fuel Tank Capacity | 9.5 L |
| Bearing Sizes |
Bearing Finder |
Chassis
| Frame Type | Steel single cradle |
| Front Suspension | Telescopic forks | Fork Oil Levels |
| Rear Suspension | Dual shock swingarm |
| Front Suspension Travel | 171 mm (6.73 inches) |
| Rear Suspension Travel | 3.5 inches = 88.9 mm |
Brakes & Wheels
360cc Other Specs
